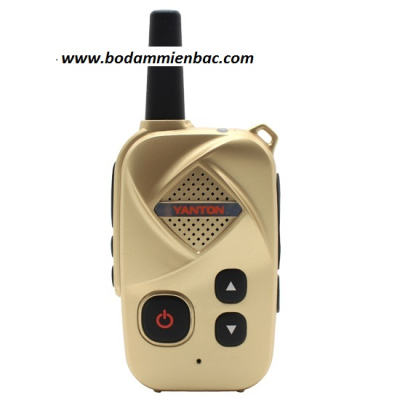

Bộ đàm cầm tay Yanton T-M5
Main Function:
YANTON T-M5
1.Frequency Range: 400-480MHz
2.16 Memory Channels
3.Output Power: 3W
4.Scan
5.PC Software Programmable, Encrypted Programming Software
6.VOX Function
7.CTCSS/DCS
8.Chinese and English Voice Prompt
9.Power Saving Function, Low Power Warning
10.High/Low Power Selective
11.Wide/Narrow Bandwidth Selective
12.Emergency Alarm
13.Monitor, Reverse Frequency
14.Busy Channel Lock
15.Transmitter Time-out Timer(TOT)
17.0-9 Grades Squelch Level Setting
18.Battery capacity 1000mah
| GENERAL |
| Frequency Range | 400-480MHz |
| Operating Temperature | -20℃ to +55℃ |
| Frequency Combination | please lock frequency synthesize |
| Frequency Stability | ±2.5ppm |
| Memory Channel | 16 |
| Working voltage | 3.7v |
| Antenna Impedance | 50Ω |
| Operating Mode | simplex of co-frequency or alien |
| Dimensions | 10*5*2cm |
| Weight | 96g |
| TRANSMIT PART |
| RF power | 3W |
| Modulate Mode | F3E |
| Max.Freq.Deviation | ≤5KHz |
| Remain Wave Radiation | ＜-60dB |
| Transmitting Current | ≤1000mA |
| RECEIVER PART |
| Sensitivity | ＜0.20uV (12dB SINAD) |
| Squeich Sensitivity | ＜0.20uV |
| Intermodulation Antijamming | 50dB |
| Audio Power output | 500mW |
| Receiving Current | ≤100mA |
| Squelch Stangby | 20mA |
