| Image |  |

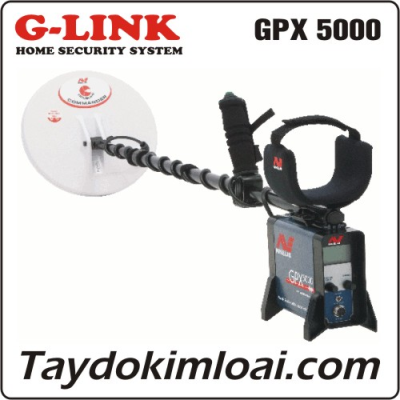

| Product | GPX 5000 |
| Application | Gold Prospecting & Deep Relic |
| Technology | MPS, DVT & SETA |
| Frequency/Transmission | Bi-Level, Advanced Pulse Induction |
| Coil (standard) | 11" Round Double-D plus 11" Monoloop. |
| Audio Output | 6.35mm (1/4") headphone/speaker jack. |
| Headphones Supplied | Koss 100 ohm headphones. |
| Visual Display | 64 x 128 pixels, transflective with white backlight. |
| Backlight | Yes with adjustable automatic 'time-out'. |
| USB Connectivity | - |
| Memory | Setting changes saved automatically and remain until changed or reset. Factory Presets can be restored on start-up. |
| Depth Indication | - |
| Detect Modes | General, Deep, Hi-Mineral, Patch, Hi-Trash & Pinpoint (all user programmable) |
| Discrimination | Iron Reject: range 1 to 10 & Off (All Metal). |
| Timings | Normal, Sensitive Extra, Enhance, Sharp, Sensitive Smooth, Coin/Relic, Salt/Gold & Fine Gold. |
| Audio tone | Variable Control 1 to 100. |
| Audio Type | Quiet, Normal, Deep & Boost. |
| Ground Balance | Automatic Ground Balance, Fixed & Tracking: Slow, Medium & Fast. Quick-Trak button. |
| Ground Balance Type | General, Specific & Ground Balance Off. |
| Trash Density | - |
| Pinpoint | - |
| Sensitivity Adjust | Rx Gain 1 to 20. |
| Tune / Noise Cancel | Automatic & Manual 0 to 255. |
| Threshold | Adjustable turn control. |
| Target Volume Adjust | Target Volume 1 to 20. Volume Limit 1 to 20. |
| Battery | Lithium-ion rechargeable battery 68Wh with in-built amplifier for speaker use. Approx. 12 Hours use. Supplied with mains and vehicle charger. |
| Low battery alert | Audio alert. |
| Length | 1100mm (43.3”) à 1300mm (51.2”). |
| Weight | 2.4kg (5.3lbs) including 11” coil (excluding battery and accessories). Battery weight 780g (1.7lbs). |
| Warranty | 1 years control box & coil. |
